As the shipbuilding industry continues to pursue lightweight, high-strength, and corrosion-resistant materials, 5059 marine aluminum alloy is becoming the material of choice for more and more shipbuilders. Belonging to the Al-Mg series of high-magnesium alloys, 5059 offers outstanding mechanical properties and excellent corrosion resistance—making it particularly well-suited for demanding marine environments.

Seven Core Advantages of 5059 Marine Grade Aluminum Alloy in Shipbuilding

1. Exceptional Strength-to-Weight Ratio: Leading the Way in Lightweight Ship Design

One of the most notable advantages of 5059 aluminum alloy is its high strength-to-weight ratio. In typical conditions such as H131 or H321 tempers, its yield and tensile strengths are significantly higher than conventional marine aluminum alloys like 5083 (typically 15–25% higher). This means designers can use thinner 5059 aluminum plates to achieve the same structural strength, significantly reducing hull weight.

2. Outstanding Corrosion Resistance: Engineered for Marine Environments

With a high magnesium content (typically 5.0–6.0%), one of the standout features of 5059 aluminum alloy is its superior corrosion resistance. Compared to the commonly used 5083 aluminum, 5059 maintains structural stability even when exposed to seawater and humid, hot environments over extended periods. It effectively prevents uniform corrosion, pitting, and more critically, intergranular corrosion and stress corrosion cracking (SCC). This performance significantly reduces maintenance costs and failure rates during service.

3. Excellent Weldability: Reliable Structural Connections

5059 alloy exhibits low susceptibility to hot cracking during welding and is compatible with common welding methods such as TIG and MIG. Post-weld, it retains good strength and corrosion resistance, resulting in stronger, more durable ship structures. The strength degradation in the heat-affected zone is minimal, making it an ideal choice for high-standard welding applications.

4. Superior Fatigue Strength: Withstands Harsh Marine Conditions and Extends Service Life

Ships are subject to continuous wave impact and vibrational loads during operation, making fatigue performance a critical factor. Additionally, impacts from collisions or rough sea conditions test the toughness of hull materials. 5059 aluminum alloy shows strong resistance to fatigue under high-frequency stress environments, effectively extending the service life of structures and reducing safety risks from fatigue failure.

5. Lightweight Structure: Enabling More Possibilities

With a density only one-third that of steel, 5059 aluminum is particularly valuable for vessels that require higher speed or fuel efficiency (such as speedboats, yachts, and naval ships). Using 5059 aluminum significantly reduces hull weight, enhances payload-to-weight ratio and propulsion efficiency, and lowers energy consumption.

6. Excellent Workability for Complex Structures

5059 aluminum alloy has great formability and can be easily shaped through stamping, bending, cutting, and drilling, making it ideal for hull structures with diverse specifications and designs. This offers greater flexibility in ship design, especially for complex and precise geometric components found in modern vessels.

7. Recyclability: Supporting Sustainable Development

Aluminum recycling consumes only about 5% of the energy required for primary aluminum production, with minimal loss in material properties. Choosing 5059 aluminum is not only an investment in ship performance but also a commitment to environmental sustainability.

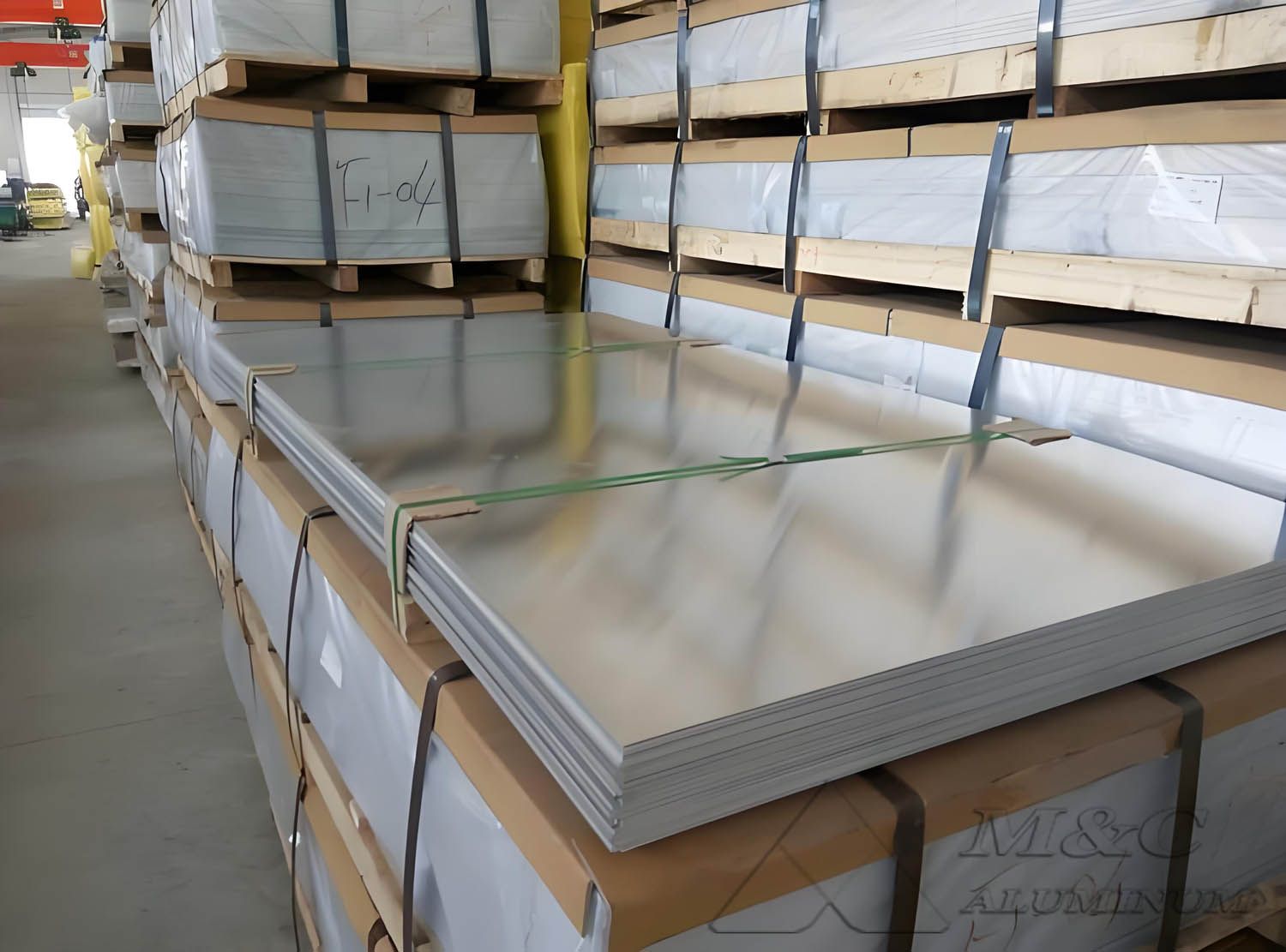

MC Aluminum, as a professional marine aluminum plate manufacturer, has obtained certifications for 5059 aluminum from major international classification societies (such as DNV, ABS, LR), and the products meet multiple standards including ISO and EN. Our products are exported to over 40 countries and regions including the United States, the United Kingdom, Italy, Australia, Germany, and Singapore. Featuring flat plate profiles and stable surface quality, they are highly trusted by customers. We offer free sample services—contact us for more product information.
