The main processing technology of 5052 marine aluminum sheet is currently through hot rolling production line, which is mainly used in yacht hull and hull parts. 5052 marine alloy aluminum sheet has a higher magnesium content than other alloys, so it has a good anti-rust function, which is also an important reason for 5052 marine aluminum sheet to be used in hulls. Magnesium has high strength, anti-rust function and corrosion resistance, which can well cope with the corrosion of seawater and fresh water.
What is 5052 Aluminum?
5052 aluminum sheet is an aluminum-magnesium alloy aluminum sheet, which is a widely used rust-proof and corrosion-resistant aluminum material. 5052 aluminum sheet has medium strength and has relatively good fatigue strength: plasticity and corrosion resistance.
5052 aluminum is the strongest alloy among the non-heat-treatable grades. Its fatigue resistance is superior to most grades of aluminum. Alloy 5052 has good resistance to saltwater corrosion in marine atmospheres and excellent machinability
5052, 5083, and 5086. All three of these aluminums are produced primarily as rolled material (in sheets or sheets) commonly found in ship hulls. With high tensile strength and excellent corrosion resistance at weld points, these alloys are well suited for use in marine applications
Specifications
5052 marine grade aluminum alloy specifications:
| Temper | O, H112, H22, H24, H32, etc. |
| Thickness | 3-50mm |
| Width | 1000mm, 1219mm, 1250mm, 1500mm, 1800mm, 2000mm |
| Normal size | 1250×2500mm, 1500mm×3000mm, 2000mm×8000mm |
| Classification society certification | CCS, DNV, NK, CCS, ABS, BV, LR, KR |
| In stock or not | Sufficient stock |
| Delivery time | 25-35 days after payment |
5052 aluminum plate mechanical properties:
| Alloy | Temper | Sample tempering | Thickness (mm) | Tensile strength Rm MPa | Extension strength RP0.2/Mpa | Elongation ％ | |
| A50 ｍｍ | A | ||||||
| 5052 | O | O | 3.00-6.00 | 175-215 | ≥65 | ≥18 | |
| >6.00-50.00 | 175-215 | ≥65 | ≥19 | ||||
| H111 | H111 | 3.00-6.00 | 175-215 | ≥65 | ≥18 | ||
| >6.00-50.00 | 170-215 | ≥65 | ≥19 | ||||
| H22, H32 | H22, H32 | 3.00-6.00 | 210-260 | ≥130 | ≥10 | ||
| H112 | H112 | 6.00-12.50 | ≥190 | ≥80 | ≥7 | ||
| >12.50-50.00 | ≥170 | ≥70 | - | ||||
Chemical composition of 5052 marine grade aluminum plate
| Element | Chemical composition (%) |
| Al | Rem |
| Si | ≤0.25 |
| Fe | ≤0.50 |
| Cu | ≤0.10 |
| Mn | ≤0.10 |
| Mg | 2.2-2.8 |
| Cr | 0.15-0.35 |
| Zn | ≤0.10 |
| Each | ≤0.05 |
| Total | ≤0.15 |
Advantages
Features of 5052 aluminum plate:
1. Lightweight and high strength.
2. Good corrosion resistance and weldability.
3. Good fatigue resistance and plasticity.
4. Good anti-rust performance.
5. Good machining performance.
6. Environmentally friendly and recyclable.
Application
Due to its excellent performance, 5052 marine aluminum plate has been widely used in the field of shipbuilding, including but not limited to:
Ship structural parts: used to manufacture structural parts such as hulls, decks, bulkheads, etc., to improve the overall strength and corrosion resistance of the hull.
Oil tank and oil pipe: due to its good corrosion resistance, it is often used to manufacture ship fuel tanks and oil pipes and other components.
Hardware and electrical housing: also used to manufacture hardware products and electrical housings on ships and other components.
Choose US
Why choose MC Aluminum?

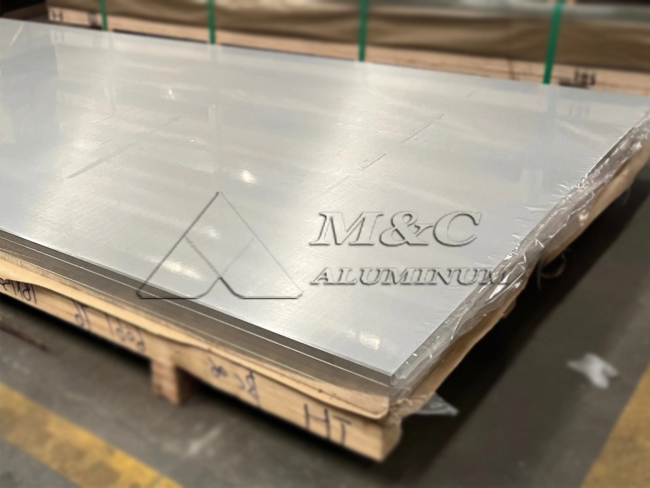

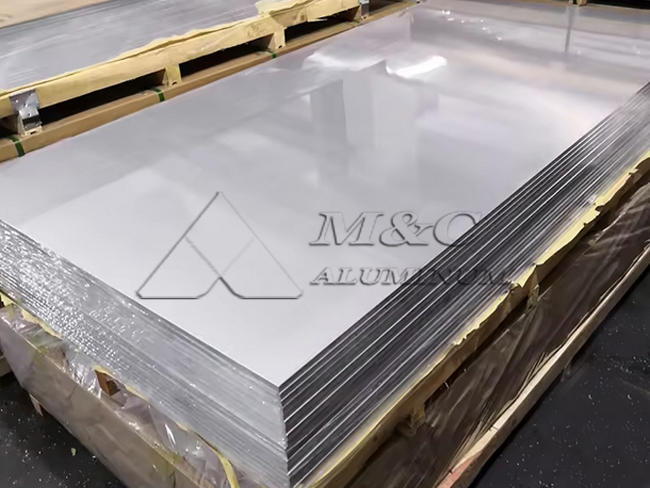

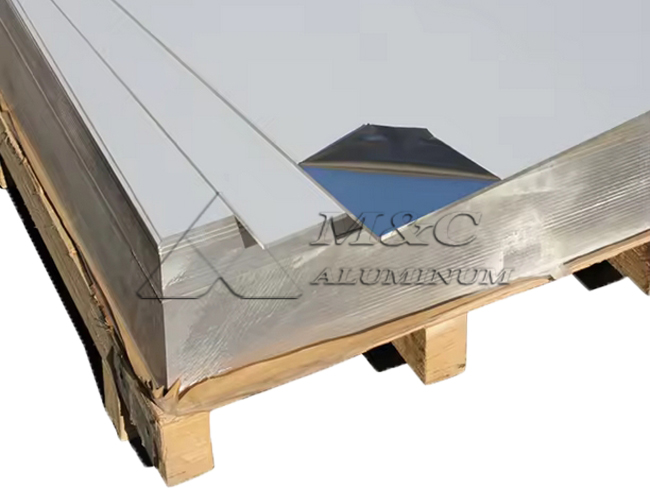

1. Marine aluminum plates have no oil spots, ripples or scratches.
2. MC marine aluminum plates have no burrs, no surface rolling marks, and neat cutting edges.
3. China Aluminum Corporation adopts advanced production technology to reduce the tendency of steel ingot cracks and improve the surface quality of rolled plates.
4. The world's advanced equipment 3000T stretching machine is introduced, which can perform permanent stretching plastic deformation of 1.0%-3.0% on the plate within the specified time according to the process requirements.
