Introduction

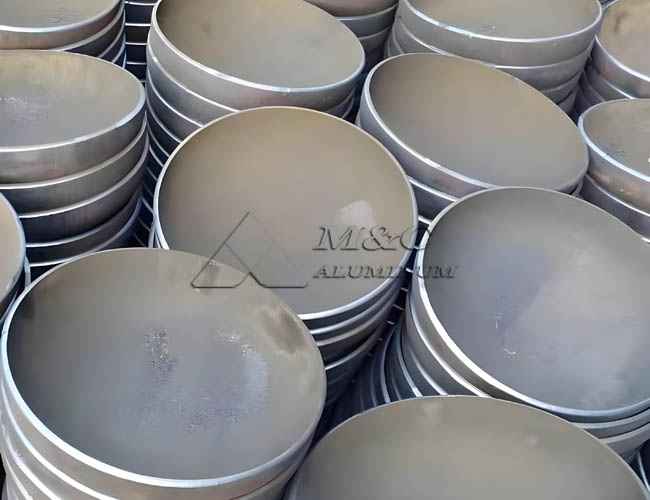

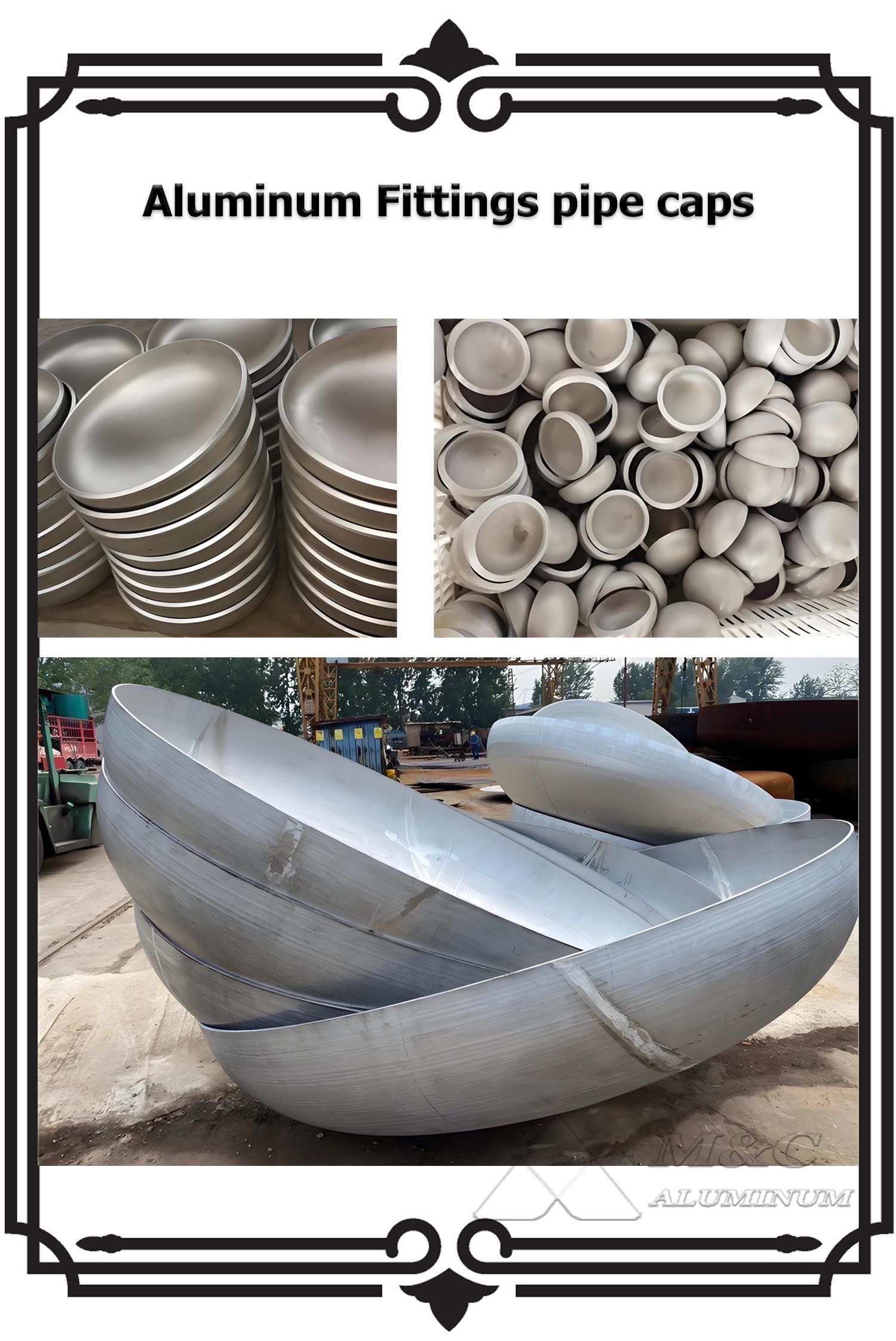

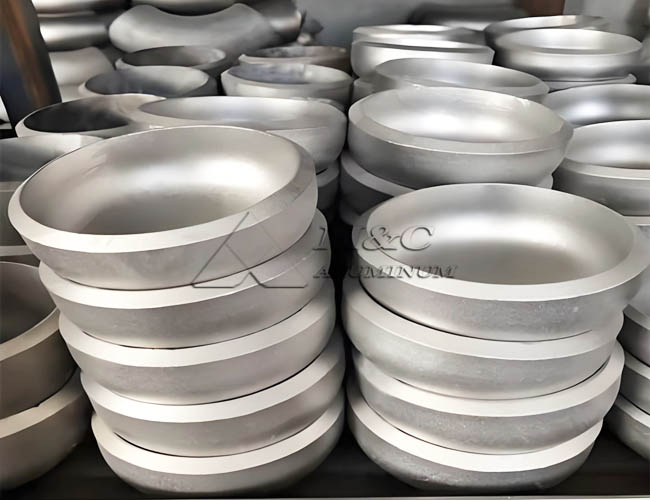

Aluminum pipe caps, also known as aluminum end caps or aluminum fittings pipe caps, are aluminum accessories designed to seal off the end of metal pipes or other tubular structures. These caps provide sealing and pressure resistance and can be manufactured through extrusion or machining. They come in various sizes and models to accommodate different pipe dimensions and types.

Materials & Characteristics

Aluminum pipe caps are made from high-strength aluminum alloys, commonly including 6061, 6063, 5083, and 7075. These materials offer the following advantages:

1.Lightweight & High Strength – Aluminum has a low density while maintaining excellent mechanical strength.
2.Corrosion Resistance – Naturally forms an oxide layer that enhances resistance to rust and environmental degradation.
3.Superior Reflectivity – Reflects heat and light efficiently, making it suitable for various industries.
4.Excellent Malleability – Easy to shape and process through different forming techniques.

Function

Main Functions of Aluminum Pipe Caps

1.Dust & Contaminant Protection – Seals off the pipe end to prevent dust, moisture, or other contaminants from entering.
2.Protective Function – Shields the pipe end from damage, extending its service life.
3.Leak Prevention – Can serve as a temporary or permanent closure to prevent fluid or gas leakage.
4.Aesthetic Enhancement – Can be anodized or surface-treated to match the pipe's color and design, improving overall appearance.

Applications

Aluminum pipe caps are widely used across various industries, including but not limited to:

• Construction Industry – Used in structural piping and plumbing systems.

• Automotive Manufacturing – Applied in exhaust systems, fuel lines, and fluid piping.

• Furniture Manufacturing – Utilized for decorative and protective pipe endings.

• Medical Equipment Industry – Used in medical gas supply and specialized tubing applications.

Different grades and types of aluminum materials can be selected based on the application scenario to ensure optimal performance and durability.

Process

Aluminum end cap production process

Raw material preparation: Select aluminum alloy plates or bars that meet the standards.

1.Cutting: Cut according to the design size.

2.Forming process:

• Cold forming: Applicable to thin-walled heads, formed by stamping or spinning.

• Hot forming: Applicable to thick-walled heads, formed by stamping after heating.

• Welding processing: TIG or MIG welding is performed on the splicing parts to ensure sealing.

• Heat treatment: Improve mechanical properties through solid solution treatment or aging treatment.

3.Surface treatment: Polishing, anodizing, spraying and other treatments are performed to improve corrosion resistance and aesthetics.

4.Quality inspection: Including size inspection, pressure testing, X-ray flaw detection, etc. to ensure product quality.
