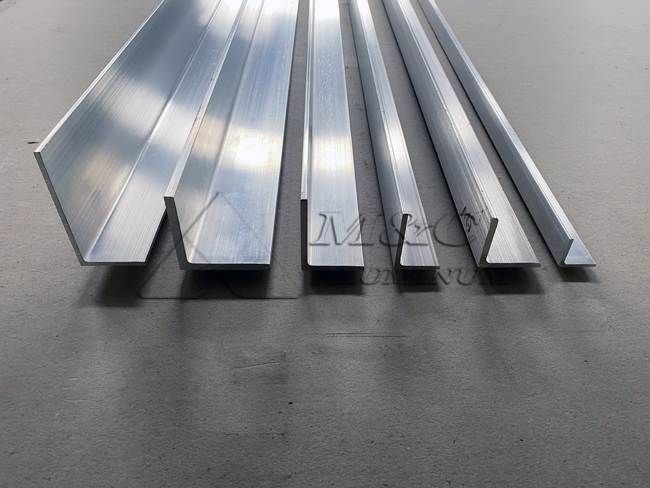

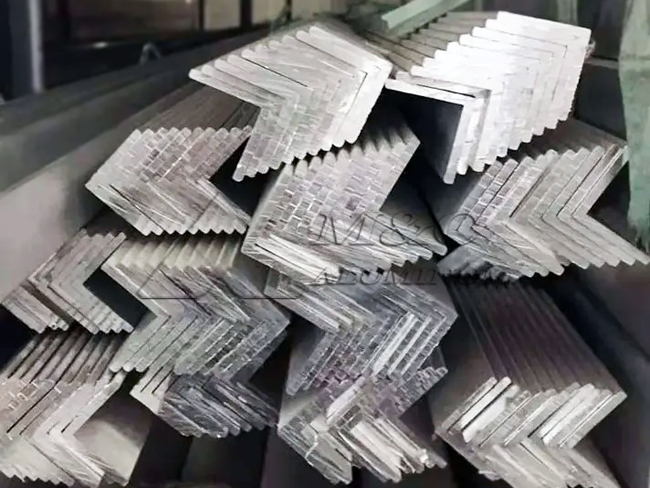

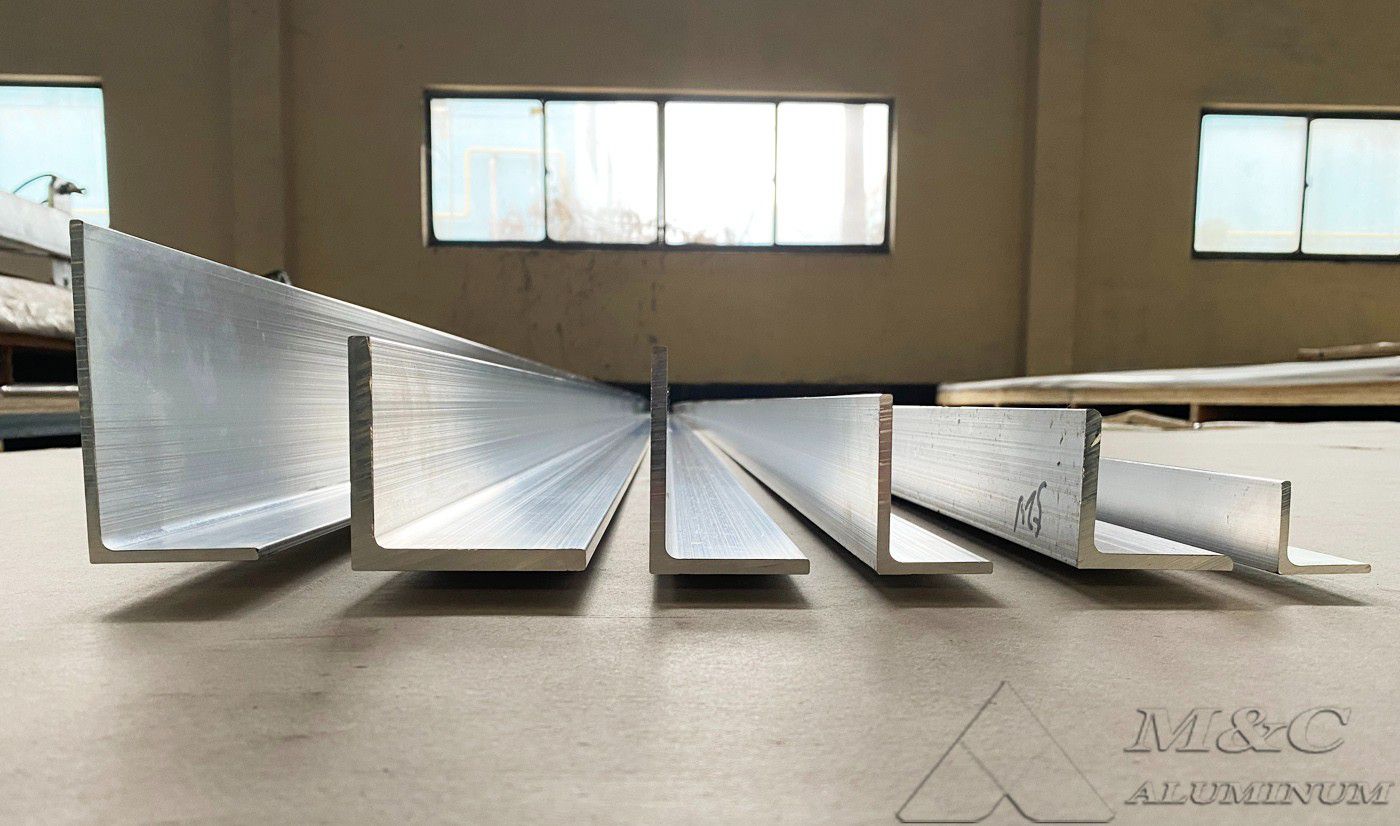

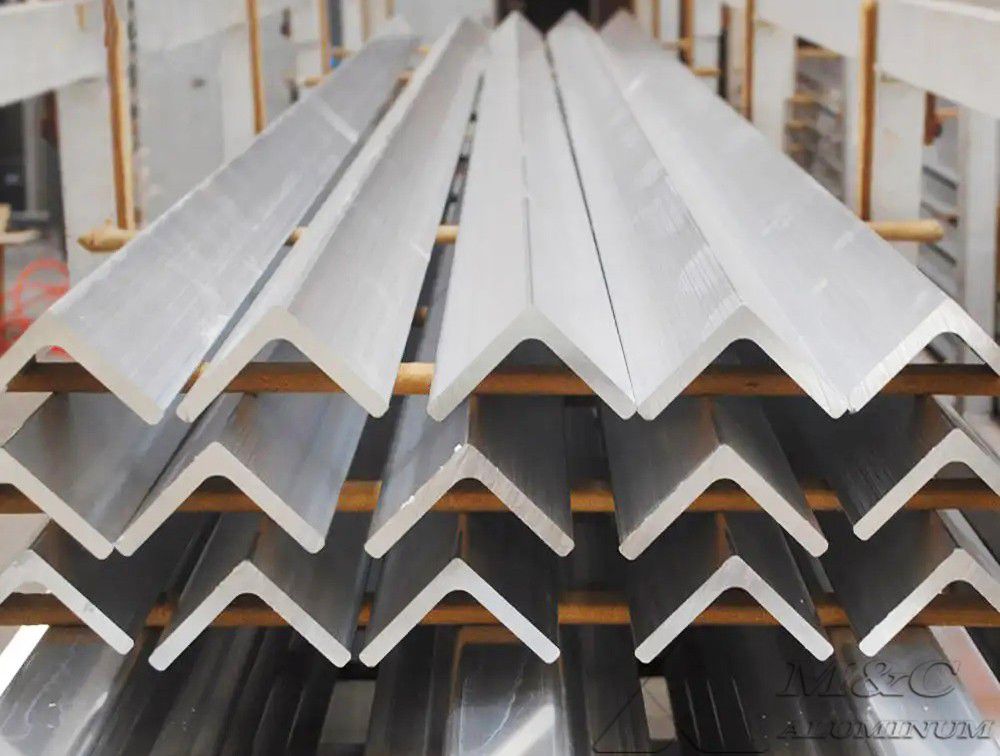

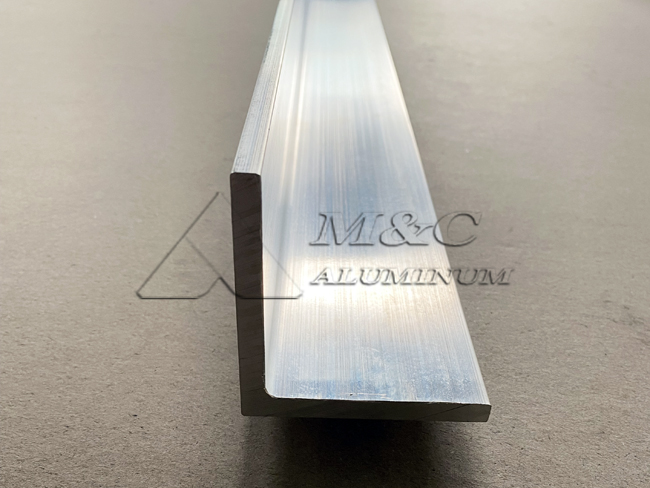

Angular aluminum, also known as L-shaped aluminum, is an aluminum profile with two sides perpendicular to each other. Aluminum is usually made of aluminum or aluminum alloy, and has the characteristics of light weight, corrosion resistance, and easy processing. Angular aluminum is also a general aluminum profile, which can be seen in the fields of shipbuilding, construction, decoration, and industry.
Marine angular aluminum is usually made of high-strength, corrosion-resistant aluminum alloy materials, such as 5083, 6061 and other alloy grades. These alloys have excellent mechanical properties and corrosion resistance, and can meet the high requirements of shipbuilding for materials.
Specifications

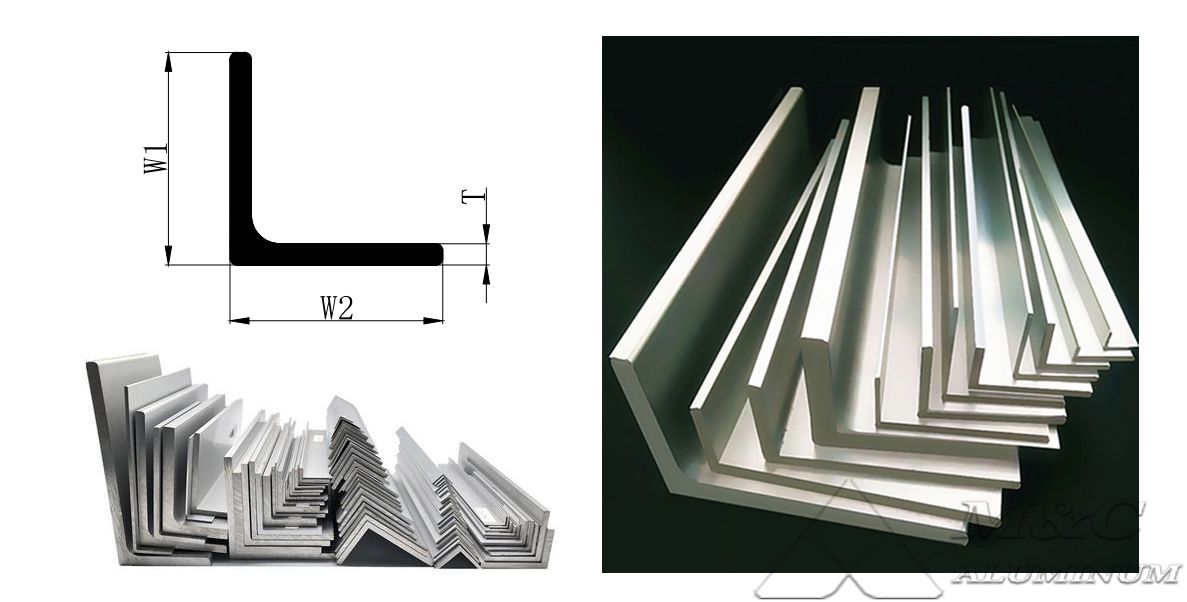

Angular aluminum specifications:
Angular aluminum | ||
W1 (mm) | W2 (mm) | T (mm) |
| 25 | 25 | 3 |
| 30 | 30 | 3 |
| 40 | 40 | 4 |
| 50 | 50 | 5 |
| 60 | 60 | 6 |
| 70 | 70 | 7 |
| 80 | 80 | 8 |
| 100 | 50 | 5 |
| 100 | 100 | 10 |
| 185 | 50 | 7 |
Marine angular aluminum specifications:
| Alloy | 5083, 5086, 5383, 5059, 6061, 6082, 6005A,etc |
| Temper | H111/H112, T5/T6 |
| Certification | BV /DNV /ABS/Lioyds |
| Thickness | 3-50 mm |
Advantages
Main features of marine angular aluminum:
1. High strength: can withstand dynamic loads and static pressure during navigation.
2. Corrosion resistance: maintain stable performance in humid and salt spray environments.
3. Lightweight: lighter than steel, reducing the overall weight of the ship, improving navigation speed and fuel efficiency.
4. Easy to process: easy to cut, weld and bend, convenient for ship manufacturing and assembly.
Application
Application scenarios of marine aluminum alloy angular aluminum:
1. Hull structure: used to strengthen the hull frame, support ship decks, cabins and bulkheads.
2. Ship interior decoration: used for internal structural support, fixation and decorative corners.
3. Mechanical equipment bracket: used to install and fix various mechanical equipment and piping systems on board.
MC Aluminum has a large number of marine aluminum sheets and various series of aluminum sheets, aluminum coils, aluminum profiles, ribbed sheets, steel-aluminum joints, aluminum welding wires and other spot goods certified by classification societies such as CCS, DNV, ABS, NK, etc. with price advantages.
