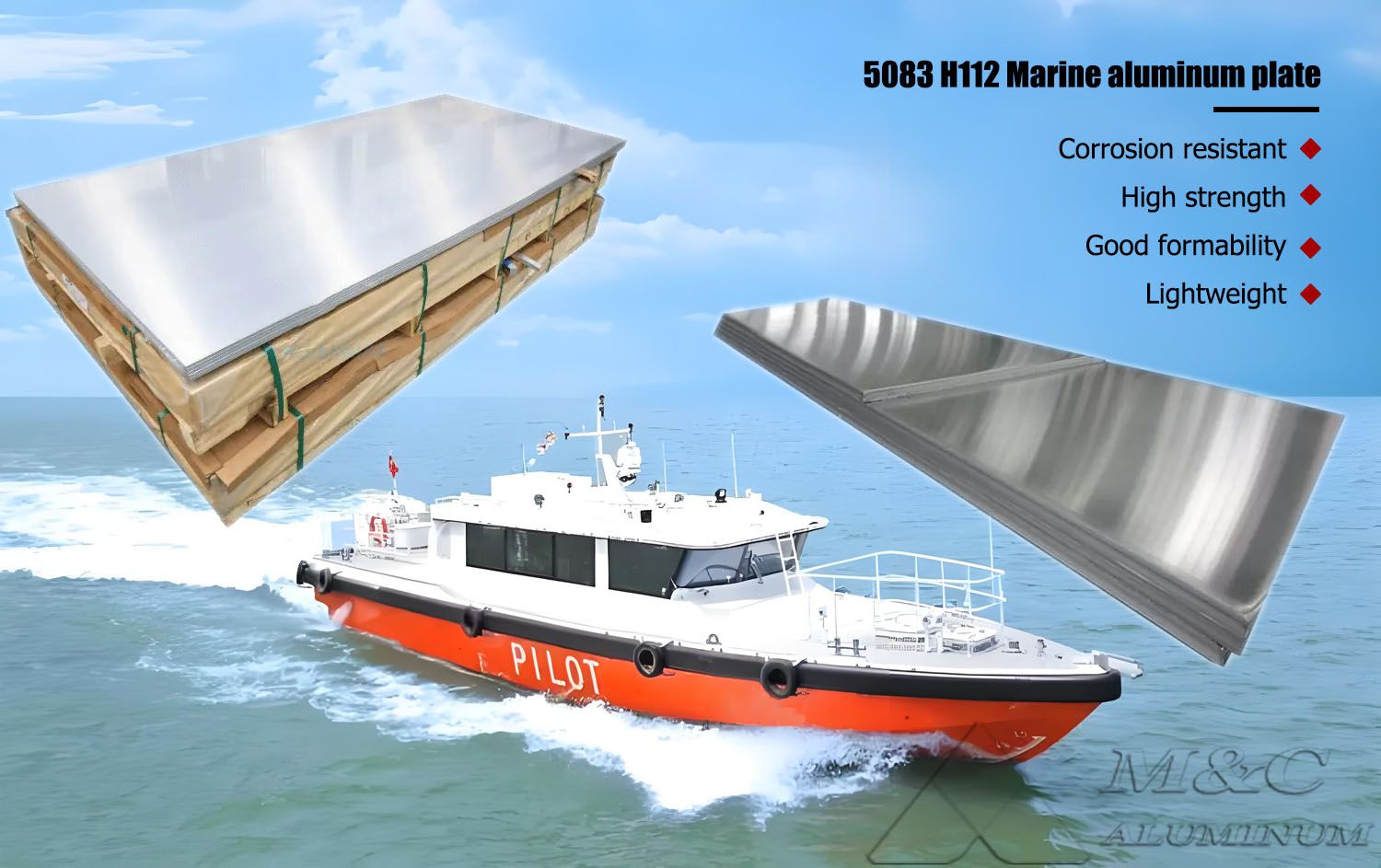

5083-H112 is an aluminum alloy plate for machining, a 5XXX series aluminum and magnesium alloy, with medium strength, good corrosion resistance and weldability. After anodizing, the alloy has a beautiful surface and good arc welding performance. It is widely used in all fields from thin plates to thick plates. It is one of the widely used aluminum alloy materials in the shipbuilding industry.
5083 H112 state introduction
5083H112: H1 indicates a simple work hardening state without additional heat treatment; the second digit after the work hardening code H (1-9) indicates the work hardening degree of the product; the meaning of the third digit after the work hardening code H, H112 indicates an alloy product suitable for hot processing and forming, and there are specified requirements for its mechanical properties.
Advantages of 5083 marine grade aluminum plate
1. Excellent corrosion resistance: It has strong resistance to salt spray, moisture and seawater corrosion common in marine environment, and is an ideal material for ships and marine engineering.
2. High strength: Among non-heat-treated aluminum alloys, 5083 has higher strength and is suitable for parts that bear certain pressure and load.
3. Excellent welding performance: It is easy to use TIG and MIG welding, and the performance after welding is not significantly reduced, which is suitable for welding and manufacturing of complex hull structures.
4. Good formability: It has excellent ductility and stamping performance, and is easy to process into hull structural parts with complex shapes.
5. Low density: The density of aluminum is only 1/3 of that of steel, which can effectively reduce the weight of the hull and improve the economy and fuel efficiency of the ship
5083 H112 marine aluminum alloy specifications
Thickness: 3mm-300mm (common specification range)
Width: 1000mm-3000mm (depending on the hull design requirements)
Length: 2000mm-12000mm (long plates can reduce welds and improve overall strength)
5083 aluminum plate chemical composition
Chcnical Composition | |||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Al |
| 5083 | 0.09 | 0.19 | 0.10 | 0.79 | 4.46 | 0.085 | 0.05 | 0.2 | 0.10 | - | remainder |
5083 aluminum plate mechanical properties
| Alloy | Tensile strength MPa | Yield strength MPa | Elongation % | Brinell hardness HB | Shear strength MPa | Fatigue strength MPa | Longitudinal elastic modulus*1000 MPa |
| 5083 Aluminum sheet | 325 | 230 | 16 | - | - | 160 | 72 |
| Application | 5083 alloy for welding structure. It is a high-strength corrosion-resistant alloy among practical non-heat-treatable alloys, suitable for welding structure. It has good seawater resistance and low-temperature characteristics. Application: ships, vehicles, low-temperature containers, containers. | ||||||
Comparison between 5083 H112 and other marine aluminum alloys
| Features | 5083 H112 | 5052-H32/H34 | 5754-H111/H22 | 6061-T6 |
| Main ingredients | Magnesium (Mg) 4.0%-4.9%, Manganese (Mn) 0.4%-1.0% | Magnesium (Mg) 2.2%-2.8%, Manganese (Mn) 0.1% | Magnesium (Mg) 2.6%-3.6%, Manganese (Mn) ≤ 0.5% | Magnesium (Mg) 0.8%-1.2%, Silicon (Si) 0.4%-0.8%, Copper (Cu) 0.15%-0.4% |
| tensile strength | 275-350 MPa | 210-260 MPa | 200-270 MPa | 310-350 MPa |
| Yield Strength | ≥125 MPa | ≥130 MPa | ≥80 MPa | ≥240 MPa |
| Corrosion resistance | Excellent, especially for marine environments | Good, suitable for general humidity and salt spray environments | Good, suitable for mildly corrosive environments | Good, but poor tolerance to high salinity or acidic environments |
| Welding performance | Good, less strength loss after welding | Excellent, welding performance is slightly better than 5083 | Good welding performance, suitable for various welding methods | Weldability is average, strength drops significantly after welding |
| Processing performance | The machinability is slightly inferior to 5052, suitable for hot working or limited cold working. | Better processing performance, suitable for stamping or bending of complex parts | Better ductility, easier processing, suitable for complex shapes | Excellent, suitable for complex parts processing and mechanical processing |
| Weight advantage | Low density (2.65 g/cm³) | Low density (2.68 g/cm³) | - | |
| Heat treatment characteristics | Not heat treatable | - | - | Can be strengthened by heat treatment |
| Application areas | Hulls, decks, bulkheads, etc. with high strength requirements | Small and medium-sized ship structures, storage tanks, chemical equipment, etc. | Fishing boats, ferries, light hulls and protective armor | Ship accessories, structural parts, bridges, truck compartments, etc. |
5083 H112 marine grade aluminum plate application
Shipbuilding: hull outer plate, bottom plate, deck, bulkhead and other main structural parts.
Marine engineering: offshore platform, ocean buoy, etc.
Other fields: tanker tanks, pressure vessels, refrigerated truck inner wall and other scenes that require corrosion resistance and high strength.
Why choose MC Aluminum ？
1. China Classification Society factory approval certificate and Norwegian Classification Society certification escort high-quality 5083 ship plate;
2. The surface of 5083 aluminum plate has no oil spots, no waves, no scratches, no roller marks, neat cutting edges and no burrs;
3. During the production process of MC Aluminum 5083 aluminum plate, a trace amount of Be is added to reduce the crack tendency of the ingot and improve the surface quality of the rolled plate
