In ship design, ribbed plate profiles are widely used in areas requiring high strength and resistance to deformation. By incorporating reinforcing ribs, the structural stiffness and load-bearing capacity are effectively enhanced, especially in parts like decks, bulkheads, and frames. The use of 6082-T6 aluminum alloy for ribbed plate profiles not only meets the ship's requirements for high strength and stiffness but also achieves lightweight, reducing the vessel's weight, improving fuel efficiency, and increasing the ship's speed.
6082 marine-grade aluminum alloy belongs to the Al-Mg-Si series, which is a heat-treatable, strengthened aluminum alloy. After T6 heat treatment (solution treatment + artificial aging), it has moderate to high strength, making it suitable for the mechanical requirements of ship structure design. Compared to 6061-T6, it has excellent corrosion resistance, maintaining stable performance in marine environments and extending the service life of the ship.
6062 Marine-grade FSW Panel Specifications
| Material Type | 6082-T6 Aluminum Alloy |
| Thickness | 3-50mm |
| Width | 100-1600mm |
| Length | 1000-16000mm |
| Tensile Strength | 290-330 MPa |
| Yield Strength | 250 MPa |
| Elongation | 8-12% |
| Hardness | 95 HB |
| Density | 2.7 g/cm³ |
| Certifications | ABS, CCS, LR, etc. |
| Applications | Ship Hull, Decks, Bulkheads, Frame Structures, etc. |

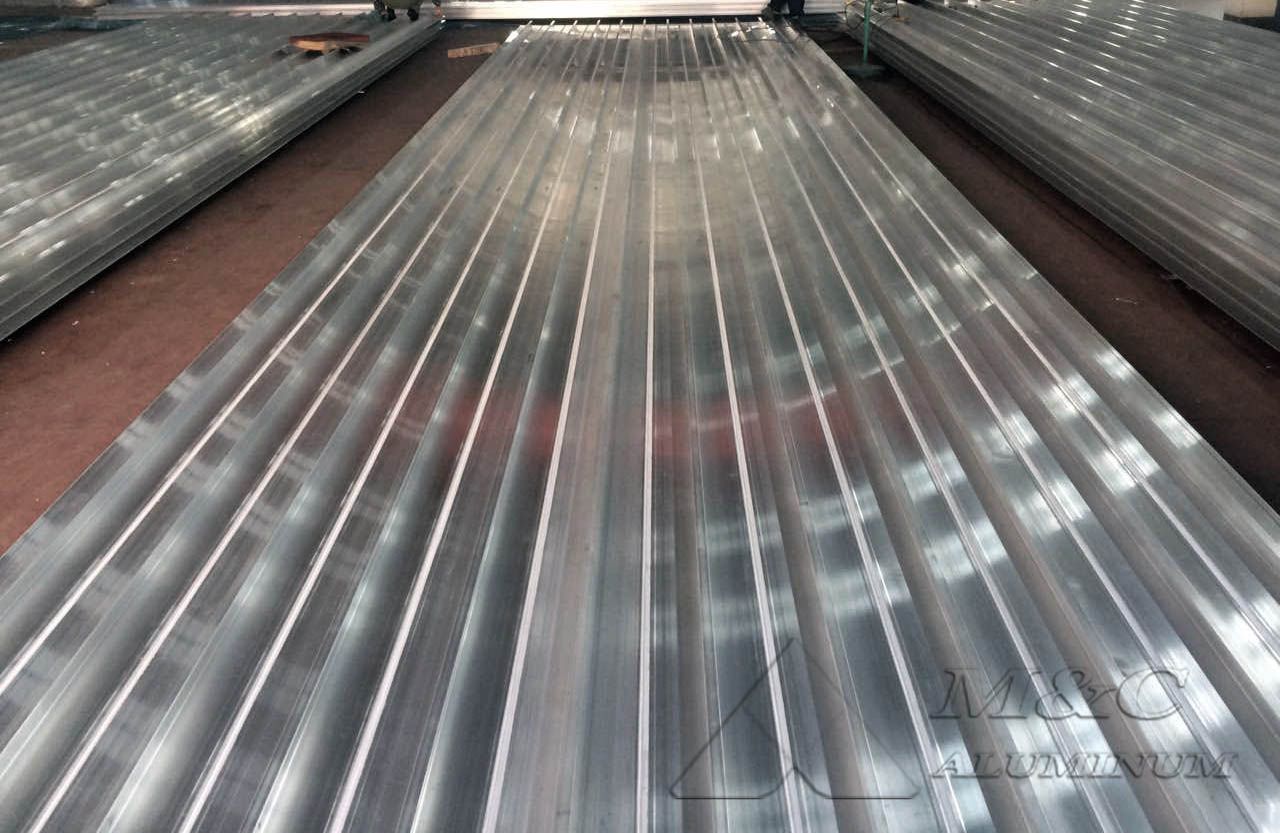

Features of 6082-T6 Marine Ribbed Plate Profile
1.Optimized Structure: The addition of reinforcing ribs increases stiffness and load-bearing capacity, reducing plate deformation.
2.Lightweight: Compared to steel ribbed plates, 6082-T6 aluminum profiles have a lower density, effectively reducing ship weight and improving fuel efficiency.
3.Marine Environment Resistance: Suitable for seawater and humid environments, not prone to rust, and low maintenance costs.
4.High Strength and Stability: After T6 heat treatment, it maintains good mechanical performance under high-stress conditions.
5.Excellent Processability: The material has good processing capabilities, suitable for cutting, welding, bending, and other processing methods. After welding, it retains good mechanical properties and is adaptable to complex ship structures.
Applications
FSW Panel used in high-speed vessels, such as hydrofoils, speedboats, hovercraft, and catamarans, in parts including the hull sides, bottom plates, ribs, bulkheads, decks, and more.
Manufacturing and Processing of 6082-T6 Ribbed Plates
1.Extrusion Forming: Manufactured through aluminum extrusion machines, ensuring consistency and high strength of the profiles.
2.Welding Process:
Suitable for MIG and TIG welding.
Pay attention to the Heat Affected Zone (HAZ) to avoid strength loss.
Friction Stir Welding (FSW) can be used to improve welding quality.
3.Surface Treatment:
Anodizing (to enhance corrosion resistance).
Spray Coating or Coatings to improve oxidation resistance.
MC Aluminum Industry, a large marine aluminum processing manufacturer, offers a range of 6 Series marine ribbed aluminum profiles, including 6082-T6 marine deck profiles and 6061-T6 marine ribbed plates, available in widths of 300mm, 600mm, and various specifications with molds. Feel free to contact us!
