As the global shipbuilding industry continues to evolve, material performance requirements are becoming increasingly demanding. 5456-H116 and 5456-H111 marine-grade aluminum plates, with their superior corrosion resistance, high strength, and excellent weldability, have become essential materials in modern shipbuilding, widely used in naval vessels, yachts, and marine platforms.
Introduction to 5456 Marine Aluminum
5456 aluminum alloy belongs to the 5xxx series (Al-Mg series) high-magnesium alloys, offering excellent mechanical properties, corrosion resistance, and weldability. Specifically, the H116 and H111 tempers of 5456 aluminum plates are optimized for marine environments, providing outstanding resistance to seawater corrosion, making them an ideal material for modern marine applications.
H116 Temper:
Work Hardening Level: Suitable for 5xxx series alloys with a magnesium content of ≥4.0%. It undergoes cold working close to full-hard condition, but the specific hardness depends on the alloy composition and processing techniques.
Applications: Used in components that require high strength and corrosion resistance, such as ship decks and bulkheads, as well as equipment subjected to high loads and harsh environments.
H111 Temper:
Work Hardening Level: Undergoes final annealing followed by slight work hardening, resulting in lower hardness and strength than H116.
Applications: Suitable for components with moderate strength and hardness requirements, such as non-structural parts of ships (interior panels, outfitting components) and other applications requiring a balance of performance characteristics.

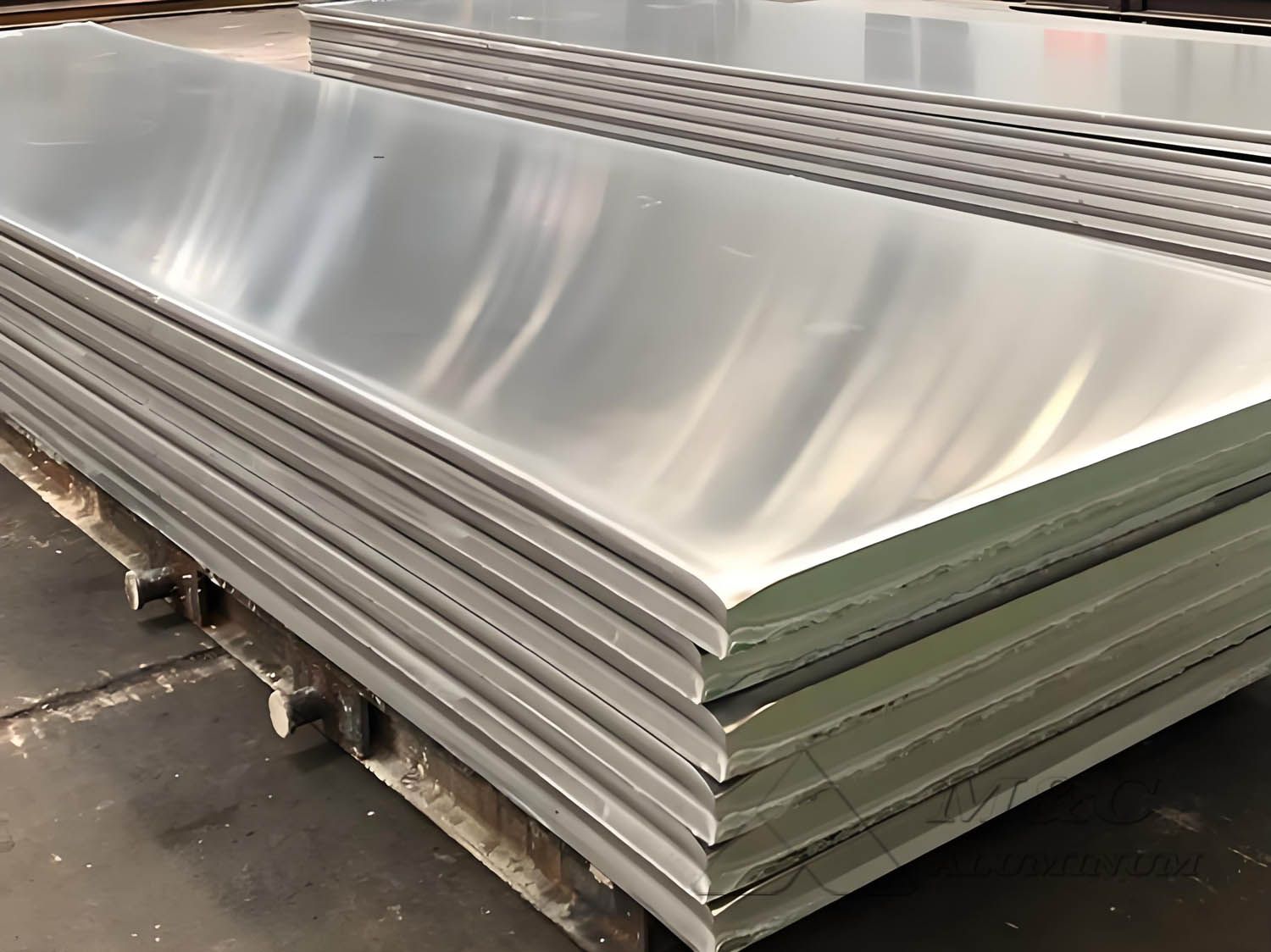

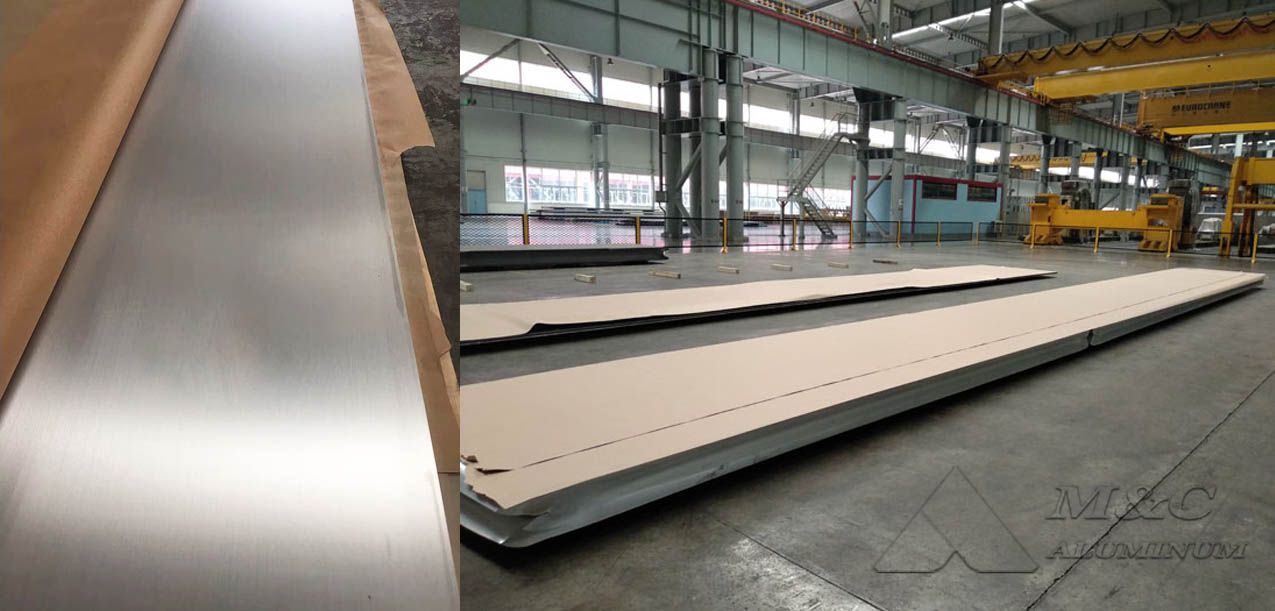

Specifications of 5456 Marine Aluminum Plate
| Alloy | 5456 |
| Tempers | O, H111, H112, H24, H32, H34, H36 |
| Dimensions | Thickness (3-50mm) × Width (1000-3100mm) × Length (1000-13000mm) |
| Certifications | BV / DNV / ABS / Lloyd’s |
Chemical Composition of 5456 Marine Aluminum
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Ohter:Total | Other:Each | Al |
| 5456 | 0.25 | 0.4 | 0.1 | 0.5-1.0 | 4.7-5.5 | 0.05-0.2 | 0.25 | 0.2 | 0.05 | 0.15 | remainder |
Key Features of 5456 Marine Aluminum Plate
1.Superior Corrosion Resistance: 5456 aluminum alloy effectively resists seawater corrosion, reducing ship body deterioration and lowering maintenance costs.
2.High Strength and Toughness: Compared to conventional aluminum alloys, 5456-H116 and H111 offer higher tensile and yield strength, ensuring structural stability in harsh marine environments.
3.Lightweight Advantage: The low-density nature of aluminum significantly reduces ship weight, improving fuel efficiency and promoting energy conservation.
4.Excellent Weldability: 5456 aluminum plate is compatible with various welding techniques such as TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding, ensuring strong weld seams and facilitating fabrication and assembly for improved shipbuilding efficiency.
Applications of 5456 Marine Aluminum Plate
1. Shipbuilding
Used in military vessels, yachts, cargo ships, and high-speed passenger ships.
Ideal for corrosion-resistant components, such as keels, bulkheads, and hull plates.
2. Marine Engineering
Offshore drilling platforms and wind power support structures.
Deep-sea mining equipment and floating marine facilities.
3. Defense and Military Equipment
Lightweight armor components for naval ships, patrol boats, and landing craft.
Offers excellent impact resistance, enhancing the combat effectiveness and durability of naval vessels.
4. Other Industries
Transportation equipment such as containers and refrigerated trucks.
Oil and gas pipelines and offshore storage tanks.
Comparison of 5456-H116/H111 with Other Aluminum Alloys
| Property | 5456-H116 | 5083-H116 | 6061-T6 | 7075-T6 |
| Tensile Strength (MPa) | 310-350 | 275-330 | 310-350 | 56-700 |
| Yield Strength (MPa) | 215-275 | 125-200 | 275 | 480 |
| Corrosion Resistance | Excellent | Excellent | Good | Moderate |
| Weldability | Excellent | Excellent | Good | Fair |
| Density (g/cm³) | 2.66 | 2.66 | 2.70 | 2.81 |
| Applications | Ships, marine engineering | Ships, storage tanks | Structural components, aerospace | Aerospace, defense |
Comparison with 5083-H116: 5456 has higher strength, making it more suitable for demanding ship structures.
Comparison with 6061-T6: 5456 offers superior corrosion resistance, while 6061 has better machinability.
Comparison with 7075-T6: 7075 provides much higher strength but has lower corrosion resistance, making it unsuitable for marine environments.
As the shipbuilding, marine engineering, and defense industries continue to grow, the demand for high-performance and lightweight materials is increasing. With its outstanding corrosion resistance, high strength, and excellent weldability, 5456-H116 and H111 marine-grade aluminum plates have become the preferred choice for modern marine and naval applications.
Looking ahead, as aluminum processing technologies continue to advance, 5456 aluminum plates will find broader applications in high-end marine engineering and military projects, contributing to the sustainable development of the global marine economy.
