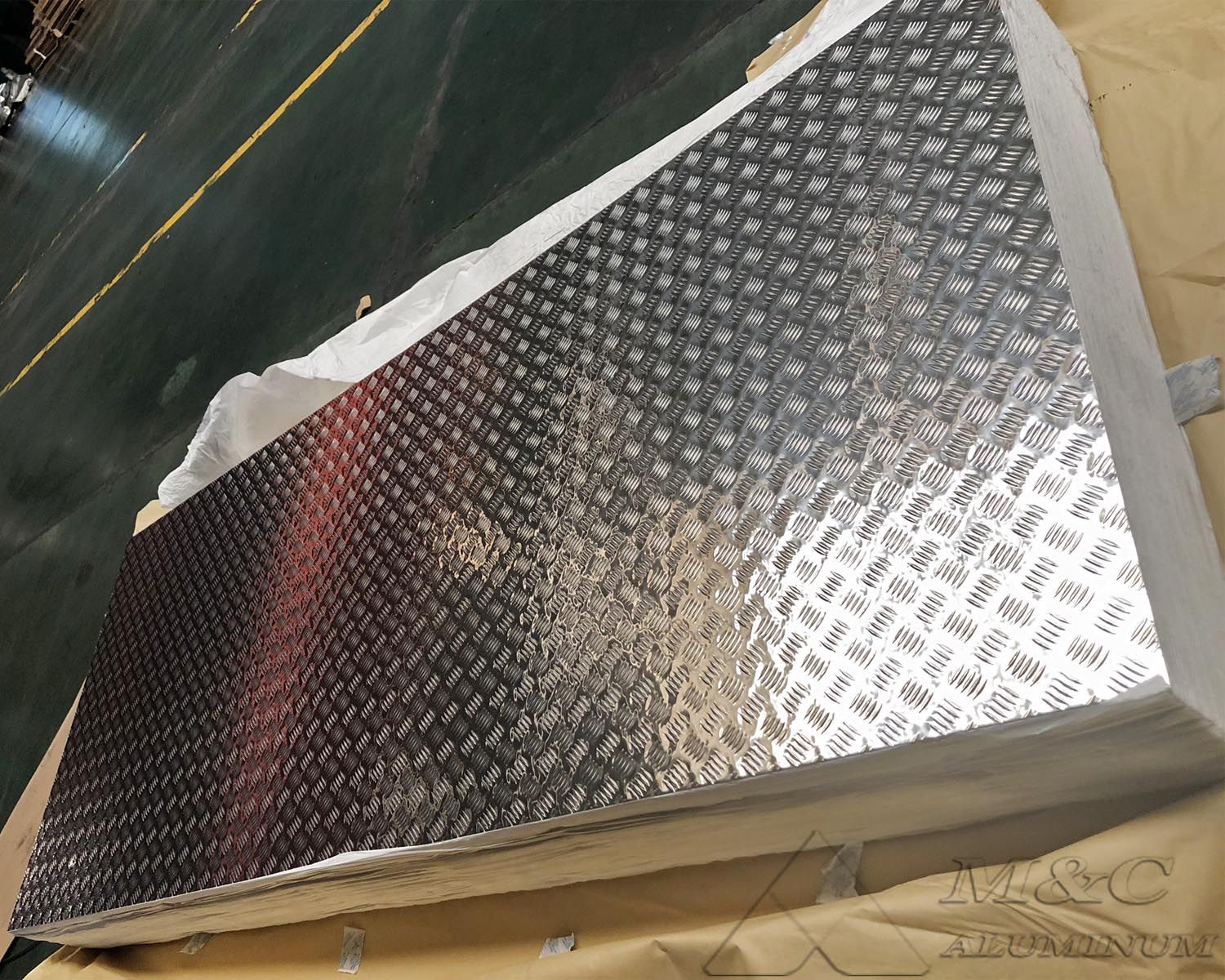

What is marine aluminum checkered plate?
Marine aluminum checkered plate is an aluminum plate designed for the marine field. Its surface is pressed into various patterns (usually five ribs, diamonds, etc.) through a specific process. These patterns not only give the plate a unique decorative effect, but more importantly, improve its anti-slip performance, making marine aluminum checkered plate have a wide range of application value in areas such as ship decks, corridors, stairs, etc. Compared with ordinary aluminum alloy plates and aluminum checkered plates, marine aluminum checkered plates have stricter processes and better performance standards.
Marine aluminum checkered plates usually use highly corrosion-resistant aluminum alloys, such as 5052, 5083 and other series. These alloys have excellent corrosion resistance, oxidation resistance and high mechanical strength, and can be used for a long time in harsh environments such as seawater.
Introduction to marine grade aluminum checkered plate alloy:
5083 aluminum alloy: With excellent corrosion resistance and high strength, it is one of the preferred materials for marine aluminum.
5052 aluminum alloy: has good corrosion resistance and weldability, suitable for medium-strength structures.
5754 aluminum alloy: has high corrosion resistance and strong machinability, suitable for parts that require good formability.
5086 aluminum plate: used in places requiring high corrosion resistance, good weldability and medium strength, such as weldable parts of ships, automobiles and aircraft plates, pressure vessels and refrigeration equipment that require strict fire protection, etc.
Marine-grade aluminum patterned plate production process and flow:
Use aluminum coil or aluminum plate blank, anneal after embossing equipment, according to the processing technology can be divided into aluminum coil continuous embossing and aluminum plate embossing after flattening. Among them, the pattern edge of the continuous embossed patterned aluminum plate of the same batch has the same texture, but it needs to be customized in batches of about 5 tons, while the aluminum plate embossing after flattening has no rigid regulations on the minimum order quantity. If the product needs to splice the pattern, it is recommended to choose aluminum coil continuous patterned aluminum plate.
Marine aluminum checkered sheet specifications
| Alloy | Temper | Thickness(mm) | Widht(mm) | Length(mm) |
| 5052 | F,O,H12,H14,H16,H18,H19,H22,H24,H26, H28,H32,H34,H36,H38,H111,H112,H114 | 3-50 | 20-2650 | 500-16000 |
| 5083 | F,O,H12,H14,H16,H18,H19,H22,H24,H26, H28,H32,H34,H36,H38,H111,H112,H114 | 3-50 | 20-2650 | 500-16000 |
| 5052 | F,O,H12,H14,H16,H18,H19,H22,H24,H26, H28,H32,H34,H36,H38,H111,H112,H114 | 3-50 | ≦2600 | 500-16000 |
Features of marine-grade aluminum checkered plates
1. Anti-slip: The raised design of the pattern can effectively prevent slipping and improve safety. It is suitable for areas that are prone to moisture, such as ship decks and stairs.
2. Corrosion resistance: The alloy material used in aluminum checkered plates can resist the corrosion of seawater and extend the service life.
3. Lightweight: The aluminum alloy material is lightweight, which reduces the weight of the ship, improves navigation efficiency and saves fuel.
4. Easy processing: Aluminum checkered plates are easy to cut, weld and form, and are more flexible during processing, suitable for customized design.
Application scenarios of marine aluminum checkered plates
Marine-grade aluminum checkered plates are widely used in marine engineering fields such as ships and offshore platforms. Specifically, it can be used for:
1. Ship deck: As the main load-bearing and walking area of the ship, the marine-grade aluminum checkered plate can provide stable anti-slip performance to ensure the safety of crew members and passengers.
2. Offshore platform: On the offshore platform, the marine-grade aluminum checkered plate can be used to build work areas, passages and stairs, etc., to provide a safe walking environment.
3. Other marine facilities: such as lighthouses, buoys, submarine pipeline supports, etc., marine-grade aluminum patterned plates can also be used for anti-skid and decoration of these facilities.
MC Aluminum's 5083, 5052, 5086, 5754, 6061 and other aluminum alloy ship plates have passed CCS China Classification Society certification, ABS American Bureau of Shipping certification, BV French Bureau of Shipping certification, LR British Bureau of Shipping certification and many other certifications. Exported to overseas countries and regions, factory direct sales, preferential prices, can be supplied in large quantities.
