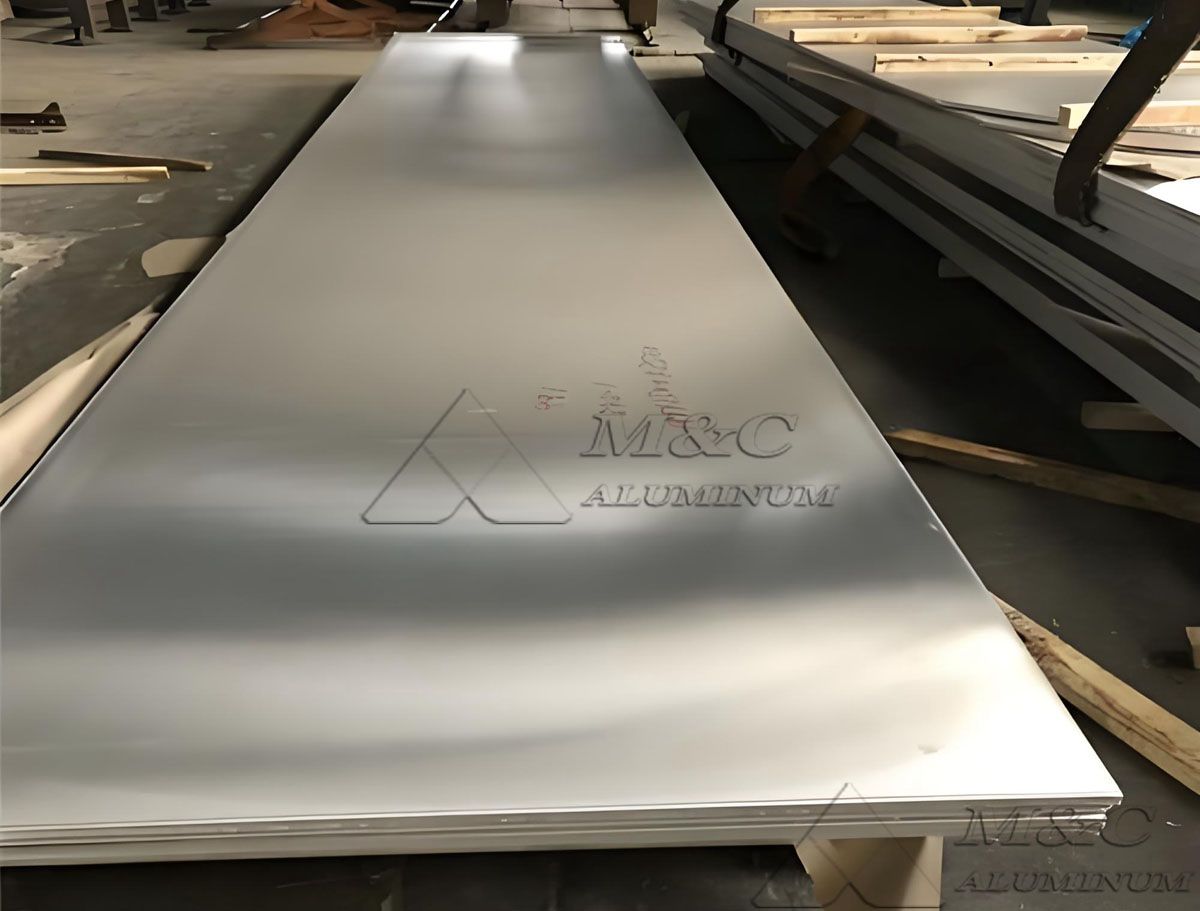

In today's shipbuilding industry, material selection is crucial for ensuring the structural integrity, durability, and performance of vessels in harsh marine environments. Among the many options available, 5052 marine aluminum plate has become a preferred material for hulls, decks, and superstructures.

5052 marine aluminum alloy is a non-heat-treatable high-magnesium alloy belonging to the 5000 series. The magnesium content in 5052 alloy promotes the formation of a dense oxide layer 12-15 nm thick on the surface. It can withstand neutral salt spray corrosion tests for over 3000 hours. In high-salt coastal environments and marine equipment submerged in seawater, the corrosion rate is only 0.006 mm/year, which is 40% more corrosion-resistant than ordinary aluminum plates, effectively solving the marine engineering problem of "steel easily rusts and incurs high maintenance costs."

A 3mm 5052 marine aluminum plate in H32 temper achieves a tensile strength of 230-280 MPa and a yield strength exceeding 190 MPa, which is 2.5 times stronger than pure aluminum of the same thickness. It can withstand marine equipment vibration loads (≤50Hz), stress from electronic device installation, and high-end mechanical impacts (≤500N) without additional stiffeners for structural support.

The 3mm 5052 aluminum plate is widely used for marine railings, walkways on offshore platforms, and seawater desalination equipment housings.

Advantages of 5052 Marine Aluminum Plate

1. Corrosion Resistance: The 2.2%-2.8% magnesium content significantly improves resistance to seawater, salt spray, and humid environments.

2. Mechanical Performance: Among non-heat-treatable alloys, 5052 offers high strength. After proper cold working (H32 or H112 temper), it meets structural requirements for load-bearing and impact resistance in shipbuilding.

3. Weldability: 5052 aluminum plate has excellent weldability, with minimal strength loss at joints, ensuring overall hull integrity and airtightness.

4. Lightweight: Aluminum's density is roughly one-third that of steel, significantly reducing vessel weight.

5. Ease of Fabrication: The 3mm plates are easy to cut, bend, and roll into complex hull curves, simplifying manufacturing processes.

6. Local Rigidity: For secondary structures, bulkheads, deck panels, and small hulls, 3mm plates with internal stiffeners provide sufficient bending and compressive strength to withstand water impact and vibration.

Specifications of 5052 Marine Aluminum Plate

Manufacturing Process of 5052 Marine Aluminum Plate

1. Casting: High-purity aluminum is melted and cast into ingots or slabs.

Hot Rolling: The slab is rolled at high temperature to the desired thickness.

2. Cold Rolling: The plate is further rolled to precise thickness while maintaining uniform surface quality.

3. Annealing/Tempering: Mechanical properties are enhanced, achieving the required temper (H112, H32, or H34).

4. Surface Treatment: Depending on the end-use, plates may undergo surface finishing, anodizing, painting, or brushing.

5. Inspection and Testing: Dimensional checks, mechanical property verification, and corrosion resistance tests ensure compliance with marine standards.

Applications of 3mm 5052 Marine Aluminum Plate

• Small High-Performance Boats: Ideal for speedboats, fishing vessels, and patrol boats that demand high speed and fuel efficiency.

• Yacht Interiors and Exteriors: Used in luxury yacht panels, bulkheads, and cabin doors due to excellent surface finish and light weight.

• Ship Superstructures: Applied in cabins, funnel covers, and top-level structures of large vessels to reduce top weight, lower the center of gravity, and improve stability and anti-tilt performance.

Using 5052 marine aluminum plates in shipbuilding reduces construction costs, enhances fuel efficiency through weight reduction, and extends service life. Its outstanding corrosion resistance lowers maintenance expenses.

MC Aluminum, as a leading marine aluminum manufacturer, offers a full range of 5-series and 6-series marine aluminum alloys, with high-quality products exported to multiple countries. Direct factory sales ensure competitive pricing and samples are available.
