In modern shipbuilding and offshore engineering, the integration of lightweight design, corrosion resistance, and high structural strength has become a core objective in material and process development. Friction Stir Welding (FSW), as a solid-state welding technology, is gradually replacing traditional fusion welding methods and has been widely applied in the manufacturing of large-size aluminum alloy panels. Today, it is extensively used in ship and offshore applications.

Technical Principles of FSW Welded Panels

Friction Stir Welding was invented by The Welding Institute (TWI) in the UK in 1991.

FSW works by plunging a rotating tool (stirring pin) into the joint line of the workpieces. The combined effect of frictional heat and plastic deformation softens the material and enables the joining process. Since the entire process occurs below the melting point of the material, typical solidification defects such as porosity, cracks, or spatter are avoided. The resulting welded joints exhibit low porosity, minimal distortion, and high strength.

For marine aluminum alloy panels (such as 5083, 5383, 5456, 6061, 6082), FSW produces continuous and high-quality welds, ensuring superior structural reliability of large welded panels.

FSW panels manufactured by MC Aluminum comply with DNV, ABS, and other classification society standards, supporting safety certification for ship structures.

Why Are FSW Panels Suitable for Marine and Offshore Applications?

• Lightweight Construction: Using aluminum-magnesium alloys and FSW technology to produce large panels significantly reduces ship weight, improves speed, and enhances fuel efficiency.

• Outstanding Weld Quality: As a solid-state joining method, FSW avoids melting of the base material, thereby eliminating common fusion weld defects such as porosity, cracks, and spatter. The weld strength can reach 80%-100% of the base material, with excellent fatigue resistance.

• Low Distortion, High Dimensional Accuracy: The heat input during FSW is relatively low and localized, resulting in minimal distortion and residual stress. This is critical for ensuring dimensional accuracy and structural stability of large ship components, while also reducing post-weld correction, saving time and costs.

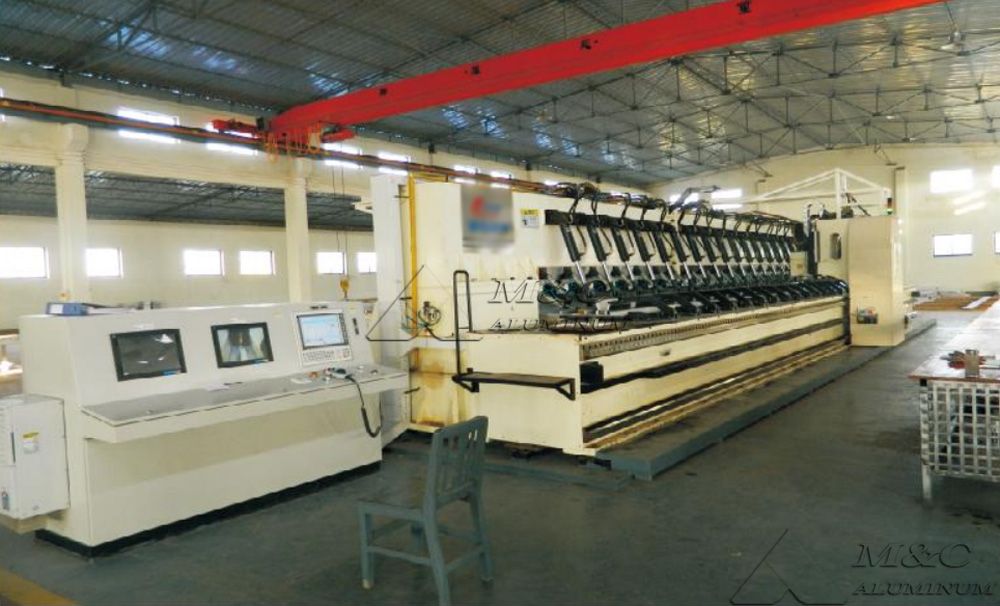

• High Efficiency and Easy Automation: FSW is highly adaptable to mechanization and automation, offering a stable welding process with high efficiency. It is particularly suitable for mass production of large flat and curved structures.

• Wide Material Compatibility:FSW is suitable for joining a variety of aluminum alloys, especially the 5-series (such as 5083, 5086, 5456) and 6-series (such as 6061, 6082) marine aluminum alloys commonly used in shipbuilding. These alloys have good corrosion resistance and strength.

• Environmentally Friendly and Safe: The FSW process produces no arc, no fumes, and no toxic gases, improving workplace conditions and aligning with the green manufacturing trends of the modern shipbuilding industry.

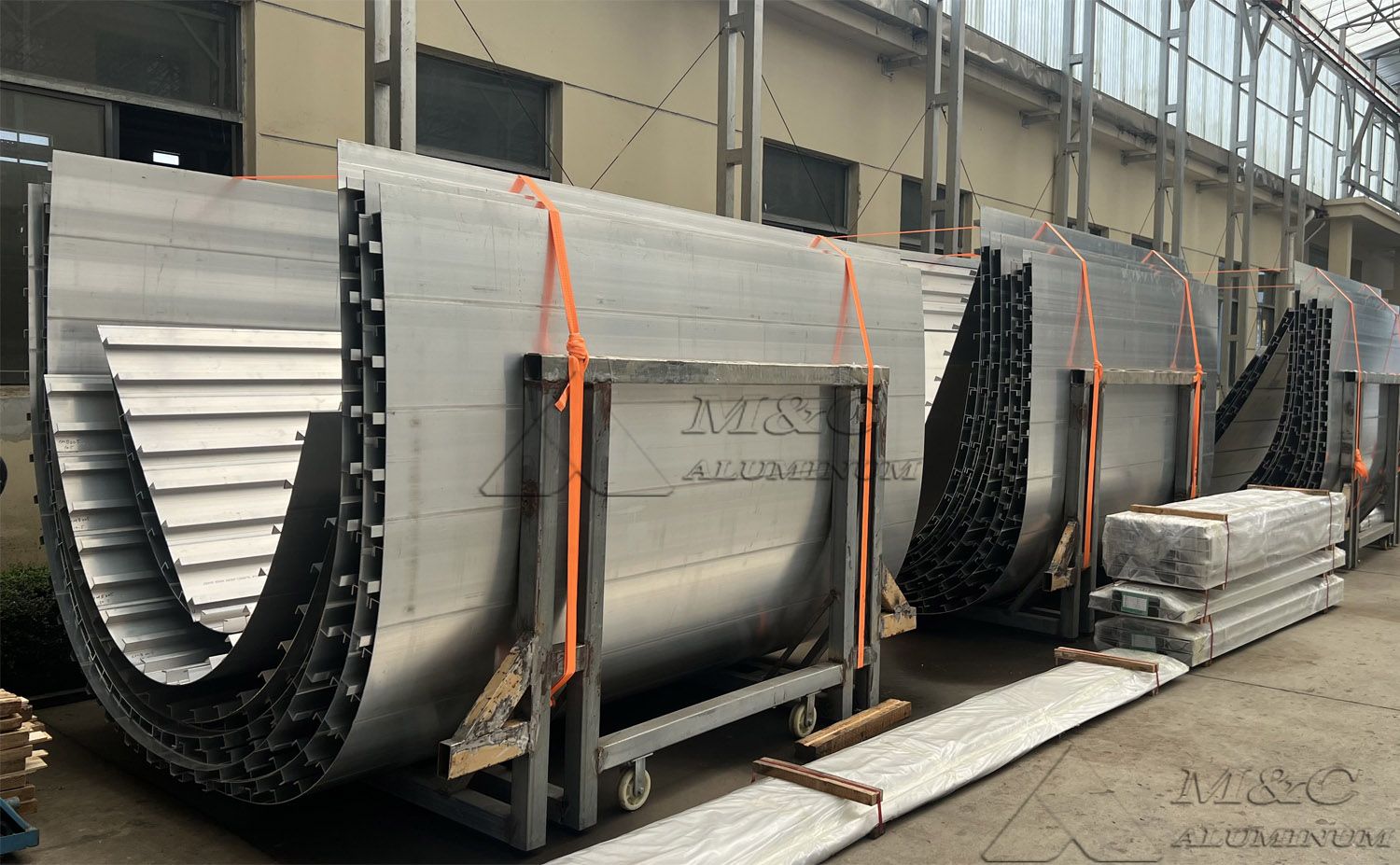

Applications of Marine Aluminum Alloy Friction Stir Welded Stiffened Panels

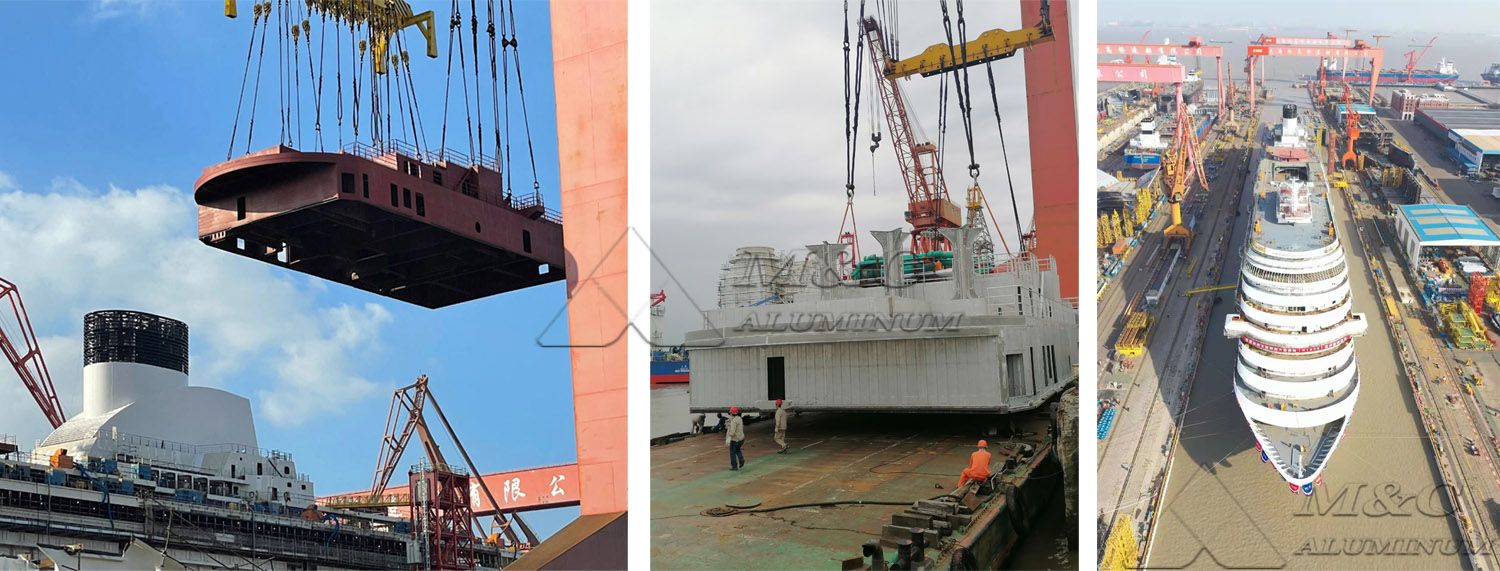

1. High-Speed Passenger Ships and Ferries
FSW panels are applied to hull plating, decks, and bulkheads, enhancing both lightweight construction and durability.

2. Tourist Vessels and Yachts
Large aluminum FSW panels allow for more complex shapes and refined exterior designs, meeting both performance and aesthetic demands.

3. Offshore Platforms and Floating Structures
FSW welded panels are used for deck modules, accommodation units, and equipment partitions, providing corrosion resistance and high load-bearing capacity.

4. Refrigerated Vessels and Tank Bulkheads
The excellent thermal conductivity and corrosion resistance of aluminum alloys, combined with FSW, ensure structural integrity and tight sealing of cargo spaces.
