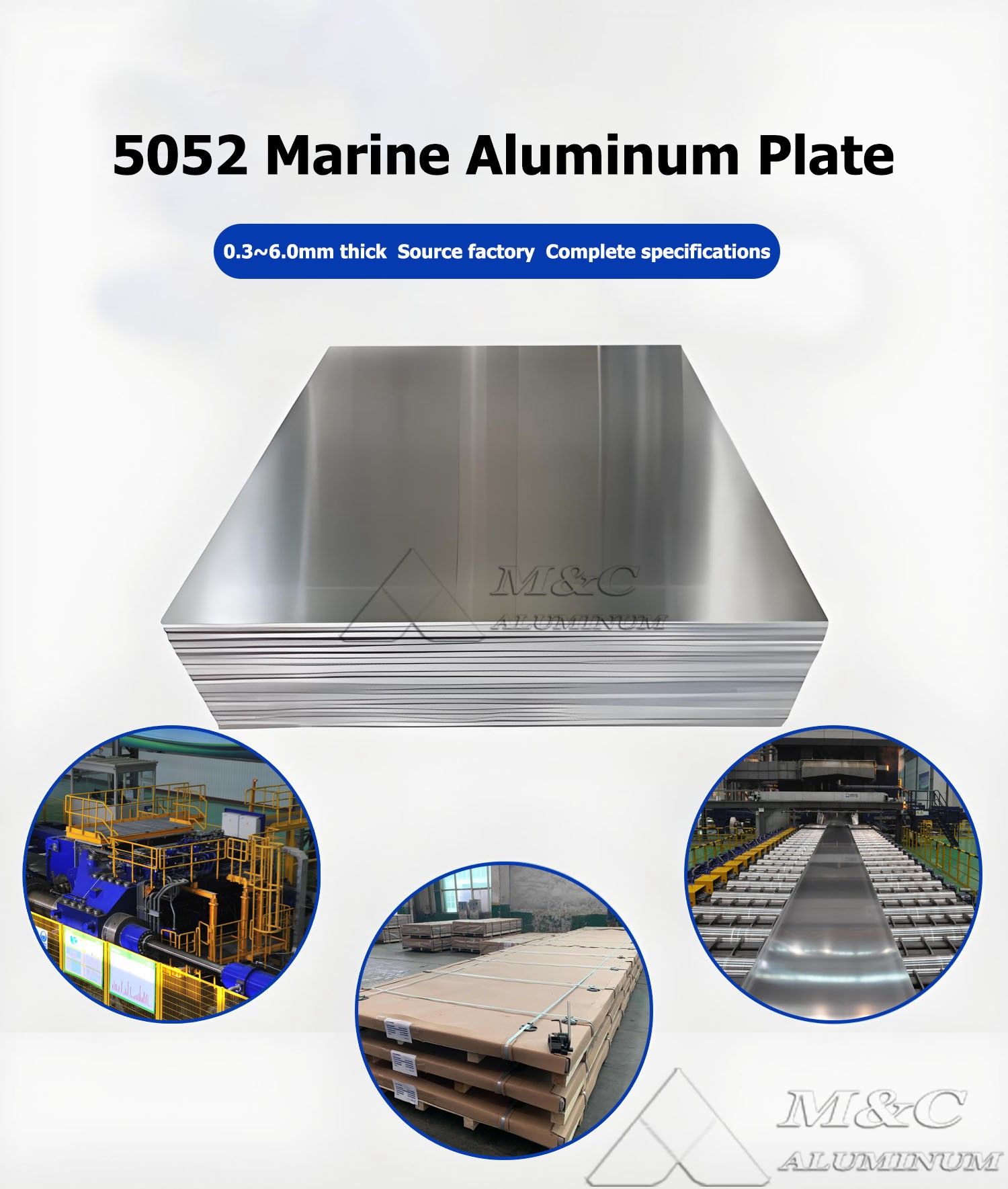

5052 aluminum plate is one of the representative alloys in the 5xxx series marine aluminum family. With its excellent corrosion resistance, good weldability, and moderate strength, it has become one of the most widely used aluminum alloys in marine engineering and shipbuilding. It is ideal for manufacturing marine components that demand lightweight construction, high reliability, and superior environmental resistance.

The 5052 marine aluminum plate belongs to the Al-Mg (aluminum-magnesium) anti-rust alloy family and is one of the most widely used medium-strength alloys in industry. The main alloying element is magnesium (Mg), ranging from 2.2% to 2.8%. It exhibits outstanding corrosion resistance, moderate strength, excellent cold workability, and superior weldability. It is commonly used in critical ship components such as hull plating, decks, cabins, fuel tanks, rudders, and anti-corrosion panels.

In marine environments, salt spray, humidity, and electrochemical corrosion from seawater can severely damage ship materials. The magnesium strengthening mechanism in 5052 aluminum allows the formation of a dense oxide film on its surface, effectively preventing oxidation and chloride ion penetration. Compared with carbon steel or common aluminum alloys (e.g., 3003, 1060), the seawater corrosion resistance of 5052 aluminum plate is improved by more than 50%.

Common tempers for 5052 marine aluminum include H32, H34, H112, and O, with H32 being the most popular for ship structural components, balancing strength and ductility.

Specifications of Marine 5052 Aluminum Plate

Mechanical Properties of 5052 Aluminum Plate

Why Choose 5052 Marine Grade Aluminum Plate?

1. Excellent Corrosion Resistance
5052 aluminum performs exceptionally well in high-salt and humid marine environments. It provides superior seawater corrosion resistance, ensuring navigation safety. In neutral salt spray tests, it resists corrosion for over 1000 hours-approximately 30% longer than 6061 aluminum. Its naturally formed oxide layer (5-10 nm thick) effectively blocks corrosive elements.

2. Strength and Hardness
5052 offers higher strength than pure aluminum (1xxx series) and certain Al-Mn alloys (3xxx series). It meets the structural strength requirements for ship components, providing durability and stability under stress.

3. Fatigue Resistance
The alloy has high fatigue strength, enabling it to withstand cyclic loads and vibrations caused by waves and operation, thereby extending service life.

4. Excellent Weldability
5052 is one of the most weldable aluminum alloys. Whether using TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding, the weld joints retain high strength and corrosion resistance, which is essential for assembling large marine structures.

Typical Applications of 5052 Aluminum Plate in Marine Components

1. Decks and Bulkheads
Its moderate strength and excellent weldability make 5052 ideal for decks and bulkheads. It withstands daily mechanical stress and impact from waves while keeping the vessel lightweight for better fuel efficiency.

2. Rudders and Steering Systems
Rudders demand high corrosion resistance and good formability. 5052 aluminum can be bent and welded easily, providing protection against seawater erosion and electrochemical attack.

3. Fuel Tanks, Freshwater Tanks, and Piping Systems
5052 aluminum's superior anti-corrosion performance makes it suitable for liquid storage tanks and pipelines, preventing leakage caused by oil or seawater corrosion.

4. Hull Panels and Protective Linings
Applied in hull bottoms, propeller guards, and propulsion zones, 5052 provides effective shielding from marine organism buildup and mechanical wear.

5. Cabin Interior and Ventilation Systems
Due to its smooth surface and coating adaptability, 5052 is used for interior walls, flooring, and ventilation equipment casings-combining functionality with aesthetic appeal.

Comparison with Other Marine Materials: Outstanding Performance

Versus 6061 Aluminum Alloy
While 6061 marine aluminum has higher strength, 5052 surpasses it in seawater corrosion resistance and formability, making it better suited for hull plating and structural panels.

Versus Steel Materials
5052 aluminum has only one-third the density of steel, significantly reducing overall vessel weight while maintaining sufficient strength. Its superior corrosion resistance minimizes maintenance costs and extends vessel lifespan.

FAQ

Q1: What's the difference between 5052 and 5083 aluminum in shipbuilding?
A1: 5083 offers higher strength and is ideal for large hulls and main structures, while 5052 focuses on superior corrosion resistance and formability, suitable for decks, cabins, and fuel tanks.

Q2: Can 5052 aluminum be used for long-term seawater immersion?
A2: Yes. 5052 has excellent chloride corrosion resistance. With anodizing or coating, it maintains stable performance even under continuous seawater exposure.

Q3: What should be considered when welding 5052 aluminum for marine parts?
A3: MIG or TIG welding is recommended using 5xxx-series filler wire (such as 5356) to ensure matching mechanical and corrosion-resistant properties at the weld seam.

Q4: Can 5052 aluminum be polished or painted?
A4: Absolutely. 5052’s smooth surface allows for mechanical and electrochemical polishing as well as anodizing or spray coating to enhance both appearance and protection.

Q5: What types of vessels use 5052 aluminum plates?
A5: 5052 is widely used in yachts, fishing boats, patrol boats, ferries, transport vessels, and port service ships—particularly in structural and decorative components.
