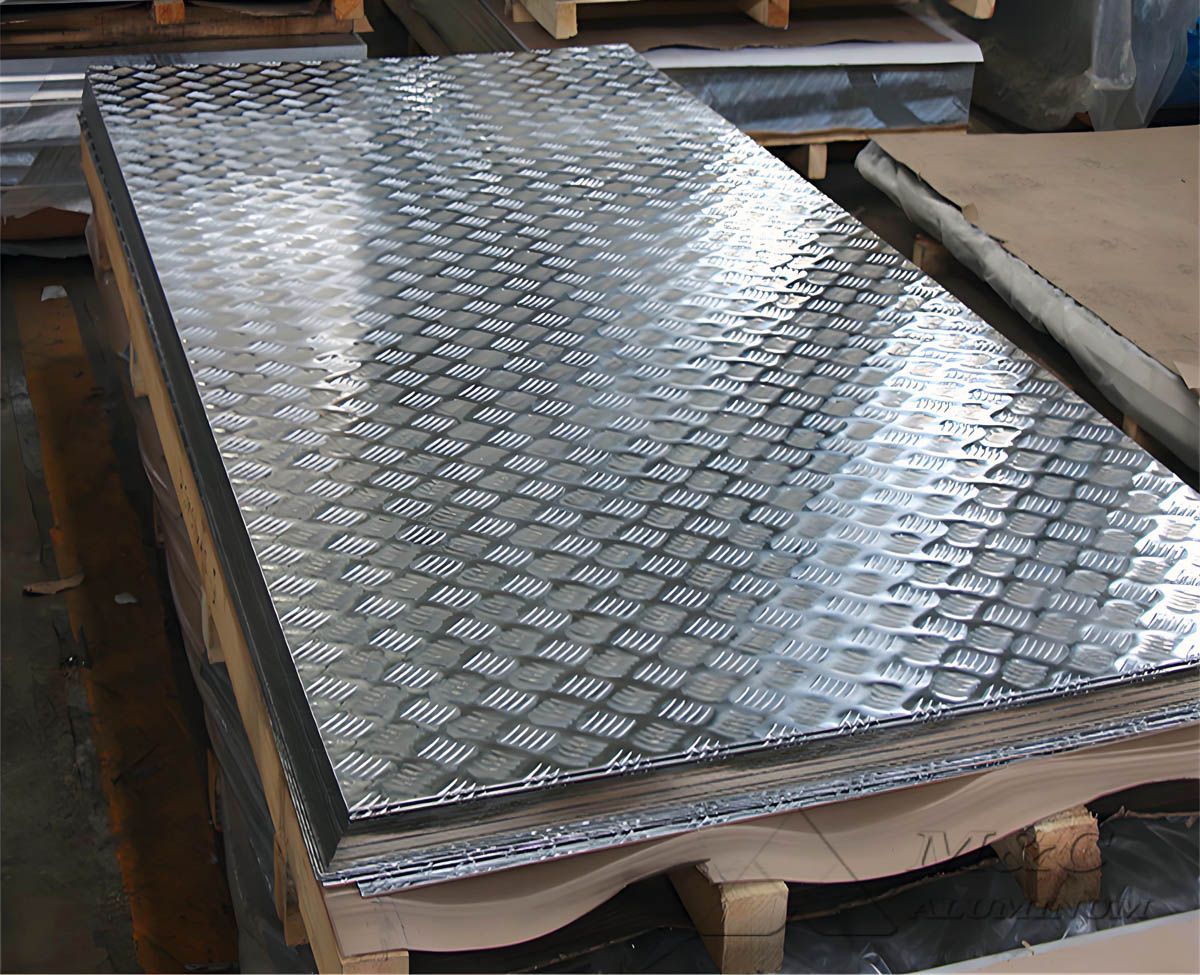

Five-rib aluminum sheet is one of the aluminum alloy pattern sheets with typical anti-skid patterns. It is very suitable for vehicles, ships, mechanical platform pedals, workshop and cold storage floors, platform bottom sheets and other occasions. The pattern of this aluminum sheet is in the shape of five parallel ribs, which not only has a decorative effect, but more importantly, it can provide good anti-skid performance to ensure the safety of personnel walking in humid or slippery environments such as ships.
Five-rib aluminum pedals made of materials such as 5052, 5083, and 5754 are often used for anti-skid ship floors. Ordinary ships can use 5052/5754, and 5083 is recommended for high-strength anti-seawater corrosion environments.
Advantages of marine grade five-rib pattern aluminum sheet
1. Strong anti-slip performance: the five-rib pattern increases friction, suitable for wet and slippery environments to prevent slipping.
2. Seawater corrosion resistance: 5000 series aluminum alloy contains magnesium, is anti-oxidation and salt spray resistant, and is suitable for ship applications.
3. Light weight and high strength: lighter than steel sheets, reducing hull weight and improving fuel efficiency.
4. Easy to process and install: can be cut, welded, and bent to meet different needs.
5. Aesthetics: not only improves the anti-slip performance, but also increases the aesthetics of the pedals, which is more in line with the aesthetic needs of modern ships.
Specifications of marine aluminum patterned sheet
| Alloy | 5052 5083 5754 |
| Thickness | 2.0mm - 8.0mm |
| Width | 1000-2650mm |
| Length | 100-16000mm |
| Pattern type | five ribs (big five, small five) |
| Surface treatment | anodizing, anti-slip coating, brushed treatment |
| Application | deck, cabin floor, ordinary ship channel, etc. |
| Transport packaging | export standard sea transport wooden pallet |
Chemical composition of marine patterned aluminum plate (%)
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other:Each | Other:Total | Al |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | - | 0.05 | 0.15 | remainder |
| 5083 | 0.4 | 0.4 | 0.1 | 0.4.10 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | 0.2 | 0.15 | 0.05 | 0.15 | remainder |
Application areas of marine grade patterned aluminum plates
(1) Ship decks, anti-skid passages
(2) Engine rooms, engine room floors
(3) Crew cabins, stair steps
(4) Dock boarding ramps, yacht decks
5052 / 5083 / 5754 five-rib aluminum pedals VS. other anti-skid materials
| Material | Advantages | Disadvantages |
| Five-rib aluminum pedal | Lightweight, non-slip, corrosion-resistant, beautiful, easy to process | The cost is slightly higher than ordinary steel plate |
| Checkered steel plate | High strength, large load-bearing capacity | Heavy weight, easy to rust, requires regular maintenance |
| Anti-slip rubber pads | Economical, easy to install | Easy to age, poor corrosion resistance |
| Stainless steel anti-skid plate | Corrosion-resistant, strong load-bearing capacity | High cost, heavy weight |
MC Aluminum provides customized services
(1) Material selection: Customers can choose aluminum pedals made of 5052, 5083 or 5754 materials according to their specific needs.
(2) Specifications and sizes: We provide pedals of various specifications and sizes for customers to choose from, and support customized services to meet the personalized needs of different ships and locations.
(3) Processing services: including bending, uncoiling, welding, punching and cutting, etc., to ensure that the pedals can perfectly adapt to various installation environments and conditions.
5052 / 5083 / 5754 five-rib aluminum pedal_price
The price of marine aluminum patterned sheet is affected by many factors such as material, specification, quantity and degree of customization. Customers should fully communicate with suppliers when purchasing, clarify their needs and budget, so as to obtain the most reasonable quotation and high-quality service.
As a large aluminum sheet manufacturer, MC Aluminum has a mature embossed aluminum sheet production line. At present, the embossed aluminum sheets we mainly produce include one rib, two ribs, three ribs, five ribs, orange peel, pointer pattern, etc. Widely used in building floors, ship interior floors, and car welcome pedals, etc., to prevent slipping. Global export, preferential prices, free samples, short delivery cycle, can accept 1-2000 tons of orders.
